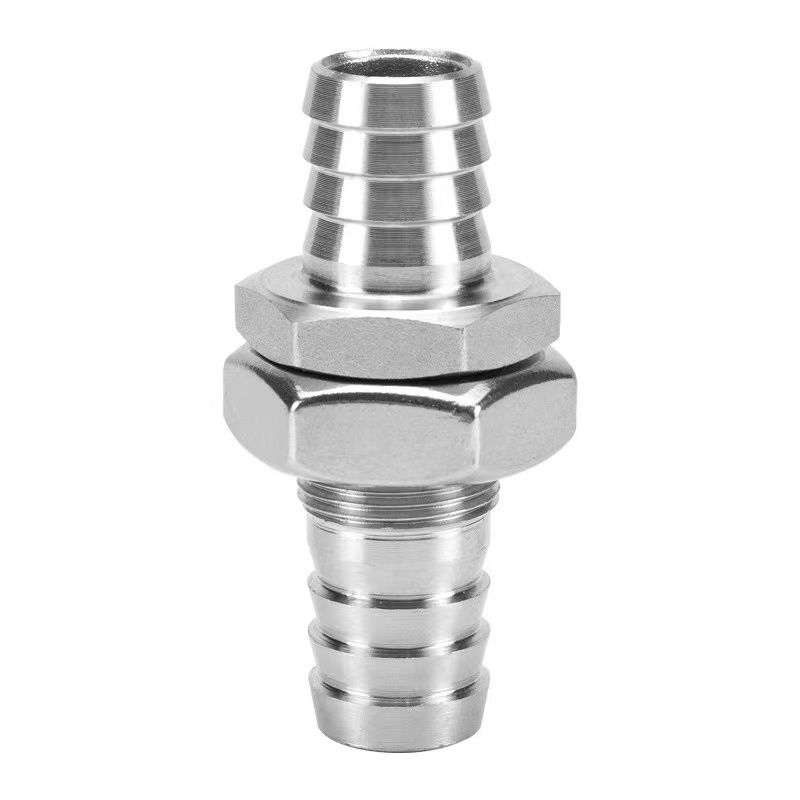

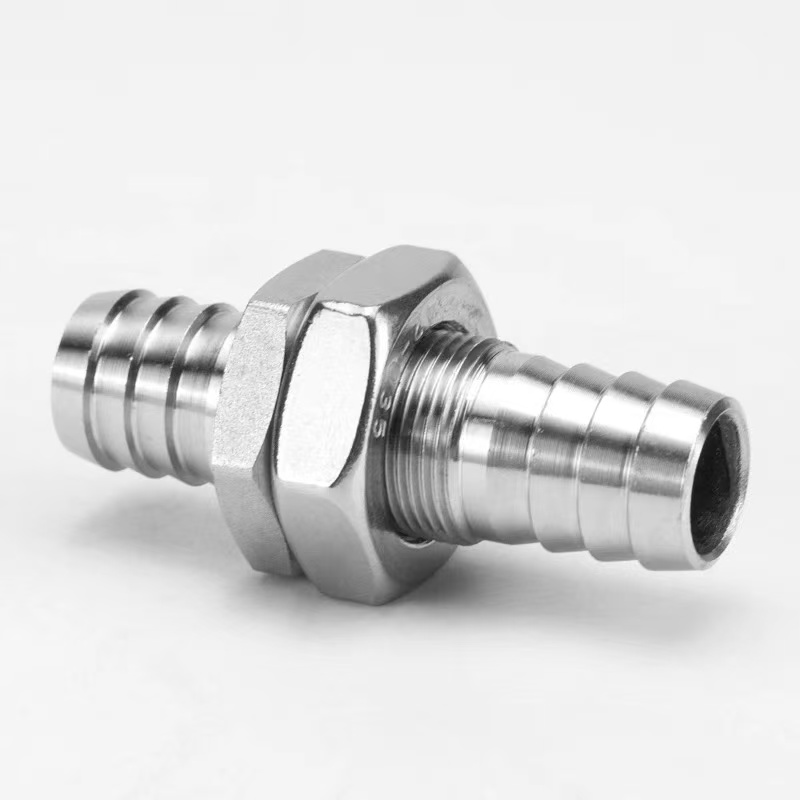

Bulkhead Barbed Fitting

Shenchi imayambitsa Bulkhead Barbed Fittings yapamwamba kwambiri, yopangidwa makamaka kuti ipangitse ma hoses kudzera pazitsulo zamagetsi pamene ikupereka chisindikizo chodalirika. Zopangidwa ndi mkuwa, SUS304, ndi SUS316L zitsulo zosapanga dzimbiri, zopangira izi zimapereka kukana kwamphamvu kwa dzimbiri ndipo ndizoyenera magwiridwe antchito osiyanasiyana.

Kapangidwe kazinthu

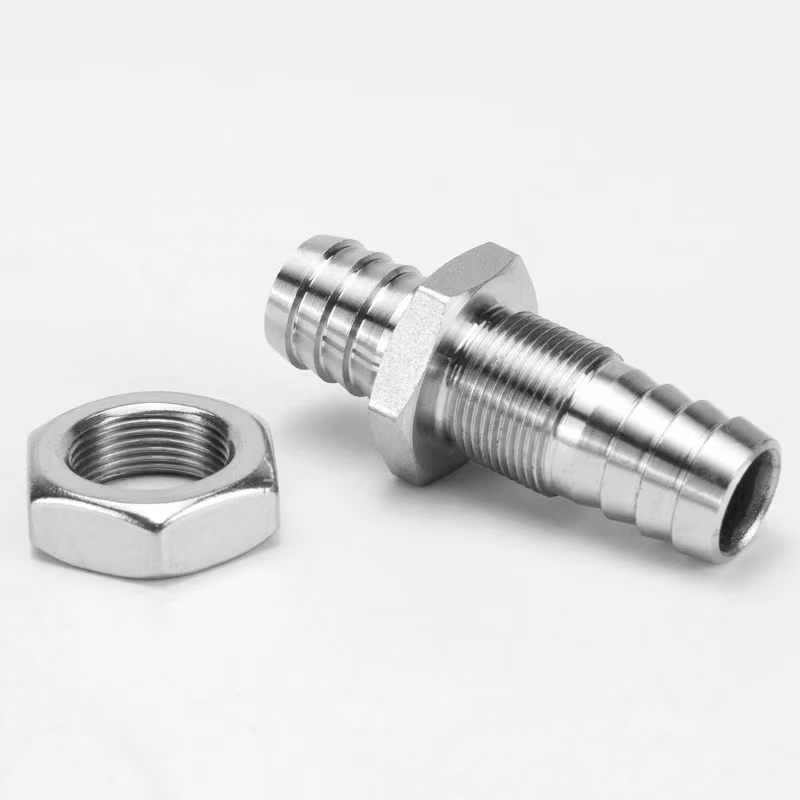

Mapangidwe a Bulkhead Barbed Fitting amaphatikizapo ulusi wa bulkhead, mtedza wokhoma, ndi malumikizidwe a payipi. Pakukhazikitsa, dzenje lokhalo limafunikira; kulimbitsa nati kumamaliza kukonza ndi kusindikiza.

Mapeto a barbed amakhala ndi kapangidwe ka anti-slip groove, kuwonetsetsa kulumikizidwa kotetezeka mukagwiritsidwa ntchito ndi payipi ya payipi. Zopangira izi zimagwiritsidwa ntchito kwambiri m'makabati owongolera, zida zochizira madzi, zida zamankhwala, ndi magawo ena okhudzana.

Zofotokozera Zamalonda

Ubwino Wamapangidwe

Bulkhead Barbed Fitting ndi chitoliro choyenerera makamaka kuti chizitha kuyendetsa ma hoses kudzera pa mapanelo a zida, zotsekera, kapena ma bulkheads pomwe akupereka chisindikizo chokhazikika. Kapangidwe kake kakang'ono kamaphatikizapo ulusi wa bulkhead, mtedza wokhoma, gasket yosindikizira, ndi kugwirizana kwa payipi ya barbed. Pakuyika, dzenje lokhalo la mainchesi ofanana liyenera kupangidwa pagawo. Chigawo cha ulusi woyenerera chimadutsa mu dzenje, ndipo mtedza umalimbikitsidwa kuchokera kumbali ina kuti amalize kukonza ndi kusindikiza.

1. Bulkhead Fixing Structure:Utali wa gawo la ulusi umasinthidwa kukhala makulidwe wamba wamba. Mtedza wotsekera ukangowonjezeredwa, umapanga kukhazikika kolimba ndi gululo, kuonetsetsa kuti koyenera kumakhalabe kotetezeka ngakhale pansi pa mphamvu yokoka kunja.

2. Kulumikizanitsa Hose ya Barbed:Mbali imodzi kapena zonse za gululi zimakhala ndi mano amingaminga kuti alowetse payipi ndikupanga cholumikizira chomata ndi chotchinga chapaipi. Kumapeto kwa minga kumatengera kapangidwe kawiri kotsutsana ndi slip groove, komwe kumapereka kukana kokwera kwambiri kuposa zopangira wamba.

3. Kusindikiza:Ma gaskets a mphira kapena mphete za O amaperekedwa mbali zonse za gululo. Mtedzawo ukaumitsidwa, gasket yosindikizirayo imapanikizidwa, ndikumatsekera kopanda madzi komanso kutsekeka kwafumbi pakutsegulira kwamagulu, ndi chitetezo chofikira IP65 kapena kupitilira apo.

Njira Yoyikira

Zosungirako zolimba za Bulkhead Barbed za Shenchi ndizosavuta kukhazikitsa. Kulumikizana kotetezeka komanso kosindikizidwa kutha kutheka munjira zisanu ndi chimodzi zokha:

Gawo 1: Kukonzekera kwa Bowo la Panel

Pangani dzenje lozungulira lofananira pagululo potengera kukula kwakunja kwa gawo la ulusi. Onetsetsani kuti m'mphepete mwa dzenjelo ndi losalala komanso lopanda burr kuti musawononge gasket yosindikiza.

Khwerero 2: Ikani Gasket Yosindikiza

Tsegulani gasket yosindikiza ya EPDM pagawo la ulusi, ndikulikanikiza poyambira. Ngati kusindikiza kumafunika mbali zonse za gululo, ikani gasket imodzi mbali zonse.

Gawo 3: Ikani Kupyolera mu gulu

Ikani gawo la ulusi mu dzenje kuchokera kumbali imodzi ya gululo, kuonetsetsa kuti maziko oyenerera amalumikizana ndi gululo ndi gasket yosindikiza pakati.

Khwerero 4: Limbani Mtedza Wotsekera

Mangani mtedza wokhoma pagawo la ulusi kuchokera mbali ina ya gululo, ndipo pang'onopang'ono muwumitse ndi wrench. Makokedwe ovomerezeka: 5-8 N · m kwa zipangizo zamkuwa ndi 8-12 N · m zitsulo zosapanga dzimbiri. Sungani thupi loyenera kukhala lokhazikika pakumangitsa.

Khwerero 5: Lumikizani Hose

Sankhani malo omwe mipiringidzo yakunja ndi 0.5-1 mm yayikulu kuposa payipi yamkati mwake. Ikani payipi molunjika kumapeto kwa minga mpaka ifike pansi. Pogwiritsa ntchito mphamvu zambiri, gwiritsani ntchito chopopera chachitsulo chosapanga dzimbiri ndikuchimanga pakati pa mipiringidzo yachiwiri ndi yachitatu.

Khwerero 6: Kusindikiza Umphumphu Mayeso

Chitani mayeso a static pressure pa 1.5 nthawi zokakamiza kugwira ntchito. Ngati palibe kutayikira kwa mphindi zitatu, unsembe ndi oyenerera.
